-88°C 3Kg/batch Manifold Programmable Benchtop Laboratory Pilot Freeze Dryer / Laboratory Lyophilizer NovaDryer-BD103
Detail
-88°C 3Kg/batch Manifold Programmable Benchtop Laboratory Pilot Freeze Dryer / Laboratory Lyophilizer NovaDryer-BD103
Main Features:
PLC controller
4 manifolds for freeze drying flasks
Vial load capacity 216 PCS(dia.22mm)/400PCS(dia.16mm)/726PCS(dia.12mm)

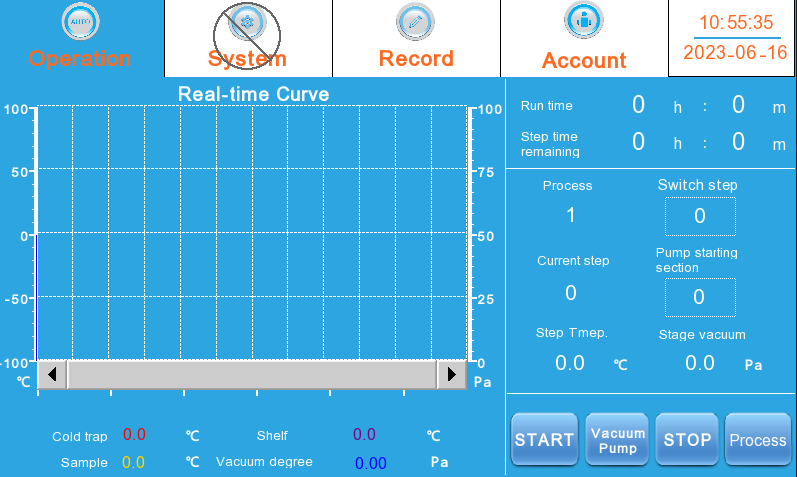

7" color touch screen LCD display of working status and main parameters in numbers and curves
40 programmes for shelf temperature, chamber vacuum and time
In-situ freeze-drying, the complete freeze drying process is completed in the drying chamber
Self-diagnosis of the main functional components to realize the start and stop of individual components and check the working status.
shelf cooling speed and shelf heating speed 3.5°C/min.
Pumping from normal pressure to 10Pa ≤15min.
Automatically record running time of the vacuum pump
Maintenance cycle of the vacuum pump can be set and modified
Vacuum pump anti-oil backflow device to prevent the vacuum pump oil from entering chamber when powered off
3-level authority password protection for parameter setting and data
Self-diagnosis function of refrigeration system failure, vacuum pump maintenance time alarm of vacuum pump, over vacuum alarm.
Automatic saving of at least 10000 alarm records viewed in real-time
Acoustic, visual and message alarm
USB data export interface
Electric defrosting
Specifications
| Model | NovaDryer-BD101 | NovaDryer-BD102 | NovaDryer-BD103 | NovaDryer-BD104 |
| Type | Standard chamber | Stoppering chamber | 4 port manifold | Stoppering chamber with 4 port manifold |
| Final condenser temp (℃) | -88℃ | |||
| Shelf temp (℃） | -60℃~+70℃ | |||
| Temperature uniformity (℃) | ±1℃ | |||
| Vacuum degree (Pa) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
| Condenser volume (L) | 11 | |||
| Freeze drying area (m2) | 0.1 | |||
| Condensing capacity (Kg/24h) | 3 | |||
| Qty of shelf | 1 | |||
| Drying chamber volume (L) | 40 | |||
| Material loading capacity (L) | 3 | |||
| Penicillin bottle ф22mm | 216 | |||
| Penicillin bottle ф16mm | 400 | |||
| Penicillin bottle ф12mm | 726 | |||
| Manifold port (PCS) | / | / | 4 | 4 |
| USB Interface | Y | |||
| Drying Chamber(standard) | Transparent acrylic | |||
| Vacuum Pump | Standard model: VRD-8 | |||
| Control System | Microprocessor, touchscreen | |||
| Powe supply | 220V/50Hz, 220V/60Hz | |||
| Power (kW) | 2.3 | |||
| Cold trap dimensions(фxH,mm) | 300×438×320 | |||
| Shelf dimensions (W×D×Hmm) | 270×400×150 | |||
| Overall dimension (WxDxHmm) | 820×695×600/995 | |||
| Packing size (main unit, WxDxHmm) | 940×840×990 | |||
| Packing size(Vacuum pump,WxDxHmm) | 600×230×300 | |||
| G.W(Kg) | 157 | 165 | 165 | 170 |
